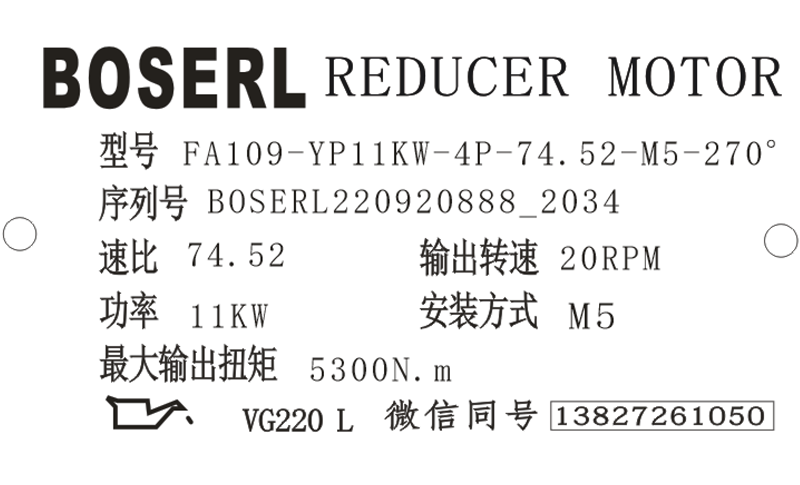

FA109減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F109減速機選型樣本。

FA109-YP11KW-4P-74.52-M5-270°

FA：系列代號

109：減速機規格代號

YP：電機

11KW：電機功率

4P：電機級數

74.52：減速機傳動比

M5：減速機安裝位置

270°：接線盒位置

FA109減速機扭力臂安裝：

請按以下步驟安裝橡膠緩沖塊：1.根據下表采用螺栓［1］和墊片［2］；2.用兩個螺母［3］緊固螺栓；3.擰緊螺栓，直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA109減速機的扭力臂安裝示意圖：齒輪減速電機

FA109減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA109減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。平行軸斜齒輪減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。分體電機減速機

FA109減速機型號：

AFA107-Y1.5KW，AFA107-Y100M4，AFA107-Y112M4，AFA107-Y11KW，AFA107-Y132M4，AFA107-Y15KW，AFA107-Y160M4，AFA107-Y18.5KW，AFA107-Y180M4，AFA107-Y2.2KW，AFA107-Y200M4，AFA107-Y225M4，AFA107-Y22KW，AFA107-Y30KW，AFA107-Y37KW，AFA107-Y3KW，AFA107-Y45KW，AFA107-Y4KW，AFA107-Y5.5KW，AFA107-Y7.5KW，AFA107-Y80M4，AFA107-Y90M4，AFA107-YB100M4，AFA107-YB112M4，AFA107-YB132M4，AFA107-YB160M4，AFA107-YB180M4，AFA107-YB200M4，AFA107-YB225M4，AFA107-YB80M4，AFA107-YB90M4，AFA107-YDP100M4，AFA107-YDP112M4，AFA107-YDP132M4，AFA107-YDP160M4，AFA107-YDP180M4，AFA107-YDP200M4，AFA107-YDP225M4，AFA107-YDP80M4，AFA107-YDP90M4，AFA107-YE100M4，AFA107-YE112M4，AFA107-YE132M4，AFA107-YE160M4，AFA107-YE180M4，AFA107-YE200M4，AFA107-YE225M4，AFA107-YE80M4，AFA107-YE90M4，AFA107-YEJ100M4，AFA107-YEJ112M4，AFA107-YEJ132M4，AFA107-YEJ160M4，AFA107-YEJ180M4，AFA107-YEJ200M4，AFA107-YEJ225M4，AFA107-YEJ80M4，AFA107-YEJ90M4，AFA107-YEJB100M4，AFA107-YEJB112M4，AFA107-YEJB132M4，AFA107-YEJB160M4，AFA107-YEJB180M4，AFA107-YEJB200M4，AFA107-YEJB225M4，AFA107-YEJB80M4，AFA107-YEJB90M4，AFA107-YP100M4，AFA107-YP112M4，AFA107-YP132M4，AFA107-YP160M4，AFA107-YP180M4，AFA107-YP200M4，AFA107-YP225M4，AFA107-YP80M4，AFA107-YP90M4，AFA107-YPB100M4，AFA107-YPB112M4，AFA107-YPB132M4，AFA107-YPB160M4，AFA107-YPB180M4，AFA107-YPB200M4，AFA107-YPB225M4，AFA107-YPB80M4，AFA107-YPB90M4，AFA107-YPE100M4，AFA107-YPE112M4，AFA107-YPE132M4，AFA107-YPE160M4，AFA107-YPE180M4，AFA107-YPE200M4，AFA107-YPE225M4，AFA107-YPE80M4，AFA107-YPE90M4，AFA107-YS100M4，AFA107-YS112M4，AFA107-YS132M4，AFA107-YS160M4，AFA107-YS180M4，AFA107-YS200M4，AFA107-YS225M4，AFA107-YS80M4，AFA107-YS90M4，AFA107-YVB100M4，AFA107-YVB112M4，AFA107-YVB132M4，AFA107-YVB160M4，AFA107-YVB180M4，AFA107-YVB200M4，AFA107-YVB225M4，AFA107-YVB80M4，AFA107-YVB90M4，AFA107-YVP100M4，AFA107-YVP112M4，AFA107-YVP132M4，AFA107-YVP160M4，AFA107-YVP180M4，AFA107-YVP200M4，AFA107-YVP225M4，AFA107-YVP80M4，AFA107-YVP90M4，AFA107-YVPEJ100M4，AFA107-YVPEJ112M4，AFA107-YVPEJ132M4，AFA107-YVPEJ160M4，AFA107-YVPEJ180M4，AFA107-YVPEJ200M4，AFA107-YVPEJ225M4，AFA107-YVPEJ80M4，AFA107-YVPEJ90M4，NFA107-Y1.5KW，NFA107-Y100M4，NFA107-Y112M4，NFA107-Y11KW，NFA107-Y132M4，NFA107-Y15KW，NFA107-Y160M4，NFA107-Y18.5KW，NFA107-Y180M4，NFA107-Y2.2KW，NFA107-Y200M4，NFA107-Y225M4，NFA107-Y22KW，NFA107-Y30KW，NFA107-Y37KW，NFA107-Y3KW，NFA107-Y45KW，NFA107-Y4KW，NFA107-Y5.5KW，NFA107-Y7.5KW，NFA107-Y80M4，NFA107-Y90M4，NFA107-YB100M4，NFA107-YB112M4，NFA107-YB132M4，NFA107-YB160M4，NFA107-YB180M4，NFA107-YB200M4，NFA107-YB225M4，NFA107-YB80M4，NFA107-YB90M4，NFA107-YDP100M4，NFA107-YDP112M4，NFA107-YDP132M4，NFA107-YDP160M4，NFA107-YDP180M4，NFA107-YDP200M4，NFA107-YDP225M4，NFA107-YDP80M4，NFA107-YDP90M4，NFA107-YE100M4，NFA107-YE112M4，NFA107-YE132M4，NFA107-YE160M4，NFA107-YE180M4，NFA107-YE200M4，NFA107-YE225M4，NFA107-YE80M4，NFA107-YE90M4，NFA107-YEJ100M4，NFA107-YEJ112M4，NFA107-YEJ132M4，NFA107-YEJ160M4，NFA107-YEJ180M4，NFA107-YEJ200M4，NFA107-YEJ225M4，NFA107-YEJ80M4，NFA107-YEJ90M4，NFA107-YEJB100M4，NFA107-YEJB112M4，NFA107-YEJB132M4，NFA107-YEJB160M4，NFA107-YEJB180M4，NFA107-YEJB200M4，NFA107-YEJB225M4，NFA107-YEJB80M4，NFA107-YEJB90M4，NFA107-YP100M4，NFA107-YP112M4，NFA107-YP132M4，NFA107-YP160M4，NFA107-YP180M4，NFA107-YP200M4，NFA107-YP225M4，NFA107-YP80M4，NFA107-YP90M4，NFA107-YPB100M4，NFA107-YPB112M4，NFA107-YPB132M4，NFA107-YPB160M4，NFA107-YPB180M4，NFA107-YPB200M4，NFA107-YPB225M4，NFA107-YPB80M4，NFA107-YPB90M4，NFA107-YPE100M4，NFA107-YPE112M4，NFA107-YPE132M4，NFA107-YPE160M4，NFA107-YPE180M4，NFA107-YPE200M4，NFA107-YPE225M4，NFA107-YPE80M4，NFA107-YPE90M4，NFA107-YS100M4，NFA107-YS112M4，NFA107-YS132M4，NFA107-YS160M4，NFA107-YS180M4，NFA107-YS200M4，NFA107-YS225M4，NFA107-YS80M4，NFA107-YS90M4，NFA107-YVB100M4，NFA107-YVB112M4，NFA107-YVB132M4，NFA107-YVB160M4，NFA107-YVB180M4，NFA107-YVB200M4，NFA107-YVB225M4，NFA107-YVB80M4，NFA107-YVB90M4，NFA107-YVP100M4，NFA107-YVP112M4，NFA107-YVP132M4，NFA107-YVP160M4，NFA107-YVP180M4，NFA107-YVP200M4，NFA107-YVP225M4，NFA107-YVP80M4，NFA107-YVP90M4，NFA107-YVPEJ100M4，NFA107-YVPEJ112M4，NFA107-YVPEJ132M4，NFA107-YVPEJ160M4，NFA107-YVPEJ180M4，NFA107-YVPEJ200M4，NFA107-YVPEJ225M4，NFA107-YVPEJ80M4，NFA107-YVPEJ90M4，SFA107-Y1.5KW，SFA107-Y100M4，SFA107-Y112M4，SFA107-Y11KW，SFA107-Y132M4，SFA107-Y15KW，SFA107-Y160M4，SFA107-Y18.5KW，SFA107-Y180M4，SFA107-Y2.2KW，SFA107-Y200M4，SFA107-Y225M4，SFA107-Y22KW，SFA107-Y30KW，SFA107-Y37KW，SFA107-Y3KW，SFA107-Y45KW，SFA107-Y4KW，SFA107-Y5.5KW，SFA107-Y7.5KW，SFA107-Y80M4，SFA107-Y90M4，SFA107-YB100M4，SFA107-YB112M4，SFA107-YB132M4，SFA107-YB160M4，SFA107-YB180M4，SFA107-YB200M4，SFA107-YB225M4，SFA107-YB80M4，SFA107-YB90M4，SFA107-YDP100M4，SFA107-YDP112M4，SFA107-YDP132M4，SFA107-YDP160M4，SFA107-YDP180M4，SFA107-YDP200M4，SFA107-YDP225M4，SFA107-YDP80M4，SFA107-YDP90M4，SFA107-YE100M4，SFA107-YE112M4，SFA107-YE132M4，SFA107-YE160M4，SFA107-YE180M4，SFA107-YE200M4，SFA107-YE225M4，SFA107-YE80M4，SFA107-YE90M4，SFA107-YEJ100M4，SFA107-YEJ112M4，SFA107-YEJ132M4，SFA107-YEJ160M4，SFA107-YEJ180M4，SFA107-YEJ200M4，SFA107-YEJ225M4，SFA107-YEJ80M4，SFA107-YEJ90M4，SFA107-YEJB100M4，SFA107-YEJB112M4，SFA107-YEJB132M4，SFA107-YEJB160M4，SFA107-YEJB180M4，SFA107-YEJB200M4，SFA107-YEJB225M4，SFA107-YEJB80M4，SFA107-YEJB90M4，SFA107-YP100M4，SFA107-YP112M4，SFA107-YP132M4，SFA107-YP160M4，SFA107-YP180M4，SFA107-YP200M4，SFA107-YP225M4，SFA107-YP80M4，SFA107-YP90M4，SFA107-YPB100M4，SFA107-YPB112M4，SFA107-YPB132M4，SFA107-YPB160M4，SFA107-YPB180M4，SFA107-YPB200M4，SFA107-YPB225M4，SFA107-YPB80M4，SFA107-YPB90M4，SFA107-YPE100M4，SFA107-YPE112M4，SFA107-YPE132M4，SFA107-YPE160M4，SFA107-YPE180M4，SFA107-YPE200M4，SFA107-YPE225M4，SFA107-YPE80M4，SFA107-YPE90M4，SFA107-YS100M4，SFA107-YS112M4，SFA107-YS132M4，SFA107-YS160M4，SFA107-YS180M4，SFA107-YS200M4，SFA107-YS225M4，SFA107-YS80M4，SFA107-YS90M4，SFA107-YVB100M4，SFA107-YVB112M4，SFA107-YVB132M4，SFA107-YVB160M4，SFA107-YVB180M4，SFA107-YVB200M4，SFA107-YVB225M4，SFA107-YVB80M4，SFA107-YVB90M4，SFA107-YVP100M4，SFA107-YVP112M4，SFA107-YVP132M4，SFA107-YVP160M4，SFA107-YVP180M4，SFA107-YVP200M4，SFA107-YVP225M4，SFA107-YVP80M4，SFA107-YVP90M4，SFA107-YVPEJ100M4，SFA107-YVPEJ112M4，SFA107-YVPEJ132M4，SFA107-YVPEJ160M4，SFA107-YVPEJ180M4，SFA107-YVPEJ200M4，SFA107-YVPEJ225M4，SFA107-YVPEJ80M4，SFA107-YVPEJ90M4，WFA107-Y1.5KW，WFA107-Y100M4，WFA107-Y112M4，WFA107-Y11KW，WFA107-Y132M4，WFA107-Y15KW，WFA107-Y160M4，WFA107-Y18.5KW，WFA107-Y180M4，WFA107-Y2.2KW，WFA107-Y200M4，WFA107-Y225M4，WFA107-Y22KW，WFA107-Y30KW，WFA107-Y37KW，WFA107-Y3KW，WFA107-Y45KW，WFA107-Y4KW，WFA107-Y5.5KW，WFA107-Y7.5KW，WFA107-Y80M4，WFA107-Y90M4，WFA107-YB100M4，WFA107-YB112M4，WFA107-YB132M4，WFA107-YB160M4，WFA107-YB180M4，WFA107-YB200M4，WFA107-YB225M4，WFA107-YB80M4，WFA107-YB90M4，WFA107-YDP100M4，WFA107-YDP112M4，WFA107-YDP132M4，WFA107-YDP160M4，WFA107-YDP180M4，WFA107-YDP200M4，WFA107-YDP225M4，WFA107-YDP80M4，WFA107-YDP90M4，WFA107-YE100M4，WFA107-YE112M4，WFA107-YE132M4，WFA107-YE160M4，WFA107-YE180M4，WFA107-YE200M4，WFA107-YE225M4，WFA107-YE80M4，WFA107-YE90M4，WFA107-YEJ100M4，WFA107-YEJ112M4，WFA107-YEJ132M4，WFA107-YEJ160M4，WFA107-YEJ180M4，WFA107-YEJ200M4，WFA107-YEJ225M4，WFA107-YEJ80M4，WFA107-YEJ90M4，WFA107-YEJB100M4，WFA107-YEJB112M4，WFA107-YEJB132M4，WFA107-YEJB160M4，WFA107-YEJB180M4，WFA107-YEJB200M4，WFA107-YEJB225M4，WFA107-YEJB80M4，WFA107-YEJB90M4，WFA107-YP100M4，WFA107-YP112M4，WFA107-YP132M4，WFA107-YP160M4，WFA107-YP180M4，WFA107-YP200M4，WFA107-YP225M4，WFA107-YP80M4，WFA107-YP90M4，WFA107-YPB100M4，WFA107-YPB112M4，WFA107-YPB132M4，WFA107-YPB160M4，WFA107-YPB180M4，WFA107-YPB200M4，WFA107-YPB225M4，WFA107-YPB80M4，WFA107-YPB90M4，WFA107-YPE100M4，WFA107-YPE112M4，WFA107-YPE132M4，WFA107-YPE160M4，WFA107-YPE180M4，WFA107-YPE200M4，WFA107-YPE225M4，WFA107-YPE80M4，WFA107-YPE90M4，WFA107-YS100M4，WFA107-YS112M4，WFA107-YS132M4，WFA107-YS160M4，WFA107-YS180M4，WFA107-YS200M4，WFA107-YS225M4，WFA107-YS80M4，WFA107-YS90M4，WFA107-YVB100M4，WFA107-YVB112M4，WFA107-YVB132M4，WFA107-YVB160M4，WFA107-YVB180M4，WFA107-YVB200M4，WFA107-YVB225M4，WFA107-YVB80M4，WFA107-YVB90M4，WFA107-YVP100M4，WFA107-YVP112M4，WFA107-YVP132M4，WFA107-YVP160M4，WFA107-YVP180M4，WFA107-YVP200M4，WFA107-YVP225M4，WFA107-YVP80M4，WFA107-YVP90M4，WFA107-YVPEJ100M4，WFA107-YVPEJ112M4，WFA107-YVPEJ132M4，WFA107-YVPEJ160M4，WFA107-YVPEJ180M4，WFA107-YVPEJ200M4，WFA107-YVPEJ225M4，WFA107-YVPEJ80M4，WFA107-YVPEJ90M4，GFA109-Y1.5KW，GFA109-Y100M4，GFA109-Y112M4，GFA109-Y11KW，GFA109-Y132M4，GFA109-Y15KW，GFA109-Y160M4，GFA109-Y18.5KW，GFA109-Y180M4，GFA109-Y2.2KW，GFA109-Y200M4，GFA109-Y225M4，GFA109-Y22KW，GFA109-Y30KW，GFA109-Y37KW，GFA109-Y3KW，GFA109-Y45KW，GFA109-Y4KW，GFA109-Y5.5KW，GFA109-Y7.5KW，GFA109-Y80M4，GFA109-Y90M4，GFA109-YB100M4，GFA109-YB112M4，GFA109-YB132M4，GFA109-YB160M4，GFA109-YB180M4，GFA109-YB200M4，GFA109-YB225M4，GFA109-YB80M4，GFA109-YB90M4，GFA109-YDP100M4，GFA109-YDP112M4，GFA109-YDP132M4，GFA109-YDP160M4，GFA109-YDP180M4，GFA109-YDP200M4，GFA109-YDP225M4，GFA109-YDP80M4，GFA109-YDP90M4，GFA109-YE100M4，GFA109-YE112M4，GFA109-YE132M4，GFA109-YE160M4，GFA109-YE180M4，GFA109-YE200M4，GFA109-YE225M4，GFA109-YE80M4，GFA109-YE90M4，GFA109-YEJ100M4，GFA109-YEJ112M4，GFA109-YEJ132M4，GFA109-YEJ160M4，GFA109-YEJ180M4，GFA109-YEJ200M4，GFA109-YEJ225M4，GFA109-YEJ80M4，GFA109-YEJ90M4，GFA109-YEJB100M4，GFA109-YEJB112M4，GFA109-YEJB132M4，GFA109-YEJB160M4，GFA109-YEJB180M4，GFA109-YEJB200M4，GFA109-YEJB225M4，GFA109-YEJB80M4，GFA109-YEJB90M4，GFA109-YP100M4，GFA109-YP112M4，GFA109-YP132M4，GFA109-YP160M4，GFA109-YP180M4，GFA109-YP200M4，GFA109-YP225M4，GFA109-YP80M4，GFA109-YP90M4，GFA109-YPB100M4，GFA109-YPB112M4，GFA109-YPB132M4，GFA109-YPB160M4，GFA109-YPB180M4，GFA109-YPB200M4，GFA109-YPB225M4，GFA109-YPB80M4，GFA109-YPB90M4，GFA109-YPE100M4，GFA109-YPE112M4，GFA109-YPE132M4，GFA109-YPE160M4，GFA109-YPE180M4，GFA109-YPE200M4，GFA109-YPE225M4，GFA109-YPE80M4，GFA109-YPE90M4，GFA109-YS100M4，GFA109-YS112M4，GFA109-YS132M4，GFA109-YS160M4，GFA109-YS180M4，GFA109-YS200M4，GFA109-YS225M4，GFA109-YS80M4，GFA109-YS90M4，GFA109-YVB100M4，GFA109-YVB112M4，GFA109-YVB132M4，GFA109-YVB160M4，GFA109-YVB180M4，GFA109-YVB200M4，GFA109-YVB225M4，GFA109-YVB80M4，GFA109-YVB90M4，GFA109-YVP100M4，GFA109-YVP112M4，GFA109-YVP132M4，GFA109-YVP160M4，GFA109-YVP180M4，GFA109-YVP200M4，GFA109-YVP225M4，GFA109-YVP80M4，GFA109-YVP90M4，GFA109-YVPEJ100M4，GFA109-YVPEJ112M4，GFA109-YVPEJ132M4，GFA109-YVPEJ160M4，GFA109-YVPEJ180M4，GFA109-YVPEJ200M4，GFA109-YVPEJ225M4，GFA109-YVPEJ80M4，GFA109-YVPEJ90M4。

FA109減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.zsxinhong.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：F109減速機
