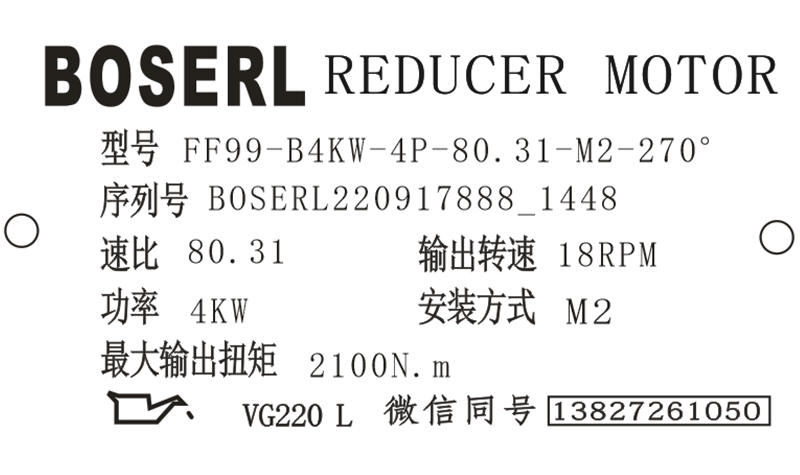

FF99減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF99減速器選型樣本。

FF99-B4KW-4P-80.31-M2-270°

FF：系列代號

99：減速機規格代號

B：電機

4KW：電機功率

4P：電機級數

80.31：減速機傳動比

M2：減速機安裝位置

270°：接線盒位置

FF99減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動FF99減速器前拆下透氣閥的運輸保險！平行軸斜齒輪減速機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

FF99減速器安裝操作的正確方法：

FF99減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列FF99減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的FF99減速器，啟動FF99減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。齒輪減速電機

FF99減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

FF99減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的FF99減速器選型樣本”）。

FF99減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。剎車電機減速機

FF99減速器型號：

YQFF97-Y0.75KW，YQFF97-Y1.1KW，YQFF97-Y1.5KW，YQFF97-Y100M4，YQFF97-Y112M4，YQFF97-Y11KW，YQFF97-Y132M4，YQFF97-Y15KW，YQFF97-Y160M4，YQFF97-Y18.5KW，YQFF97-Y180M4，YQFF97-Y2.2KW，YQFF97-Y200M4，YQFF97-Y22KW，YQFF97-Y30KW，YQFF97-Y3KW，YQFF97-Y4KW，YQFF97-Y5.5KW，YQFF97-Y7.5KW，YQFF97-Y80M4，YQFF97-Y90M4，YQFF97-YB100M4，YQFF97-YB112M4，YQFF97-YB132M4，YQFF97-YB160M4，YQFF97-YB180M4，YQFF97-YB200M4，YQFF97-YB80M4，YQFF97-YB90M4，YQFF97-YDP100M4，YQFF97-YDP112M4，YQFF97-YDP132M4，YQFF97-YDP160M4，YQFF97-YDP180M4，YQFF97-YDP200M4，YQFF97-YDP80M4，YQFF97-YDP90M4，YQFF97-YE100M4，YQFF97-YE112M4，YQFF97-YE132M4，YQFF97-YE160M4，YQFF97-YE180M4，YQFF97-YE200M4，YQFF97-YE80M4，YQFF97-YE90M4，YQFF97-YEJ100M4，YQFF97-YEJ112M4，YQFF97-YEJ132M4，YQFF97-YEJ160M4，YQFF97-YEJ180M4，YQFF97-YEJ200M4，YQFF97-YEJ80M4，YQFF97-YEJ90M4，YQFF97-YEJB100M4，YQFF97-YEJB112M4，YQFF97-YEJB132M4，YQFF97-YEJB160M4，YQFF97-YEJB180M4，YQFF97-YEJB200M4，YQFF97-YEJB80M4，YQFF97-YEJB90M4，YQFF97-YP100M4，YQFF97-YP112M4，YQFF97-YP132M4，YQFF97-YP160M4，YQFF97-YP180M4，YQFF97-YP200M4，YQFF97-YP80M4，YQFF97-YP90M4，YQFF97-YPB100M4，YQFF97-YPB112M4，YQFF97-YPB132M4，YQFF97-YPB160M4，YQFF97-YPB180M4，YQFF97-YPB200M4，YQFF97-YPB80M4，YQFF97-YPB90M4，YQFF97-YPE100M4，YQFF97-YPE112M4，YQFF97-YPE132M4，YQFF97-YPE160M4，YQFF97-YPE180M4，YQFF97-YPE200M4，YQFF97-YPE80M4，YQFF97-YPE90M4，YQFF97-YS100M4，YQFF97-YS112M4，YQFF97-YS132M4，YQFF97-YS160M4，YQFF97-YS180M4，YQFF97-YS200M4，YQFF97-YS80M4，YQFF97-YS90M4，YQFF97-YVB100M4，YQFF97-YVB112M4，YQFF97-YVB132M4，YQFF97-YVB160M4，YQFF97-YVB180M4，YQFF97-YVB200M4，YQFF97-YVB80M4，YQFF97-YVB90M4，YQFF97-YVP100M4，YQFF97-YVP112M4，YQFF97-YVP132M4，YQFF97-YVP160M4，YQFF97-YVP180M4，YQFF97-YVP200M4，YQFF97-YVP80M4，YQFF97-YVP90M4，YQFF97-YVPEJ100M4，YQFF97-YVPEJ112M4，YQFF97-YVPEJ132M4，YQFF97-YVPEJ160M4，YQFF97-YVPEJ180M4，YQFF97-YVPEJ200M4，YQFF97-YVPEJ80M4，YQFF97-YVPEJ90M4，F(xiàn)WF97-Y0.75KW，F(xiàn)WF97-Y1.1KW，F(xiàn)WF97-Y1.5KW，F(xiàn)WF97-Y100M4，F(xiàn)WF97-Y112M4，F(xiàn)WF97-Y11KW，F(xiàn)WF97-Y132M4，F(xiàn)WF97-Y15KW，F(xiàn)WF97-Y160M4，F(xiàn)WF97-Y18.5KW，F(xiàn)WF97-Y180M4，F(xiàn)WF97-Y2.2KW，F(xiàn)WF97-Y200M4，F(xiàn)WF97-Y22KW，F(xiàn)WF97-Y30KW，F(xiàn)WF97-Y3KW，F(xiàn)WF97-Y4KW，F(xiàn)WF97-Y5.5KW，F(xiàn)WF97-Y7.5KW，F(xiàn)WF97-Y80M4，F(xiàn)WF97-Y90M4，F(xiàn)WF97-YB100M4，F(xiàn)WF97-YB112M4，F(xiàn)WF97-YB132M4，F(xiàn)WF97-YB160M4，F(xiàn)WF97-YB180M4，F(xiàn)WF97-YB200M4，F(xiàn)WF97-YB80M4，F(xiàn)WF97-YB90M4，F(xiàn)WF97-YDP100M4，F(xiàn)WF97-YDP112M4，F(xiàn)WF97-YDP132M4，F(xiàn)WF97-YDP160M4，F(xiàn)WF97-YDP180M4，F(xiàn)WF97-YDP200M4，F(xiàn)WF97-YDP80M4，F(xiàn)WF97-YDP90M4，F(xiàn)WF97-YE100M4，F(xiàn)WF97-YE112M4，F(xiàn)WF97-YE132M4，F(xiàn)WF97-YE160M4，F(xiàn)WF97-YE180M4，F(xiàn)WF97-YE200M4，F(xiàn)WF97-YE80M4，F(xiàn)WF97-YE90M4，F(xiàn)WF97-YEJ100M4，F(xiàn)WF97-YEJ112M4，F(xiàn)WF97-YEJ132M4，F(xiàn)WF97-YEJ160M4，F(xiàn)WF97-YEJ180M4，F(xiàn)WF97-YEJ200M4，F(xiàn)WF97-YEJ80M4，F(xiàn)WF97-YEJ90M4，F(xiàn)WF97-YEJB100M4，F(xiàn)WF97-YEJB112M4，F(xiàn)WF97-YEJB132M4，F(xiàn)WF97-YEJB160M4，F(xiàn)WF97-YEJB180M4，F(xiàn)WF97-YEJB200M4，F(xiàn)WF97-YEJB80M4，F(xiàn)WF97-YEJB90M4，F(xiàn)WF97-YP100M4，F(xiàn)WF97-YP112M4，F(xiàn)WF97-YP132M4，F(xiàn)WF97-YP160M4，F(xiàn)WF97-YP180M4，F(xiàn)WF97-YP200M4，F(xiàn)WF97-YP80M4，F(xiàn)WF97-YP90M4，F(xiàn)WF97-YPB100M4，F(xiàn)WF97-YPB112M4，F(xiàn)WF97-YPB132M4，F(xiàn)WF97-YPB160M4，F(xiàn)WF97-YPB180M4，F(xiàn)WF97-YPB200M4，F(xiàn)WF97-YPB80M4，F(xiàn)WF97-YPB90M4，F(xiàn)WF97-YPE100M4，F(xiàn)WF97-YPE112M4，F(xiàn)WF97-YPE132M4，F(xiàn)WF97-YPE160M4，F(xiàn)WF97-YPE180M4，F(xiàn)WF97-YPE200M4，F(xiàn)WF97-YPE80M4，F(xiàn)WF97-YPE90M4，F(xiàn)WF97-YS100M4，F(xiàn)WF97-YS112M4，F(xiàn)WF97-YS132M4，F(xiàn)WF97-YS160M4，F(xiàn)WF97-YS180M4，F(xiàn)WF97-YS200M4，F(xiàn)WF97-YS80M4，F(xiàn)WF97-YS90M4，F(xiàn)WF97-YVB100M4，F(xiàn)WF97-YVB112M4，F(xiàn)WF97-YVB132M4，F(xiàn)WF97-YVB160M4，F(xiàn)WF97-YVB180M4，F(xiàn)WF97-YVB200M4，F(xiàn)WF97-YVB80M4，F(xiàn)WF97-YVB90M4，F(xiàn)WF97-YVP100M4，F(xiàn)WF97-YVP112M4，F(xiàn)WF97-YVP132M4，F(xiàn)WF97-YVP160M4，F(xiàn)WF97-YVP180M4，F(xiàn)WF97-YVP200M4，F(xiàn)WF97-YVP80M4，F(xiàn)WF97-YVP90M4，F(xiàn)WF97-YVPEJ100M4，F(xiàn)WF97-YVPEJ112M4，F(xiàn)WF97-YVPEJ132M4，F(xiàn)WF97-YVPEJ160M4，F(xiàn)WF97-YVPEJ180M4，F(xiàn)WF97-YVPEJ200M4，F(xiàn)WF97-YVPEJ80M4，F(xiàn)WF97-YVPEJ90M4，JCFF97-Y0.75KW，JCFF97-Y1.1KW，JCFF97-Y1.5KW，JCFF97-Y100M4，JCFF97-Y112M4，JCFF97-Y11KW，JCFF97-Y132M4，JCFF97-Y15KW，JCFF97-Y160M4，JCFF97-Y18.5KW，JCFF97-Y180M4，JCFF97-Y2.2KW，JCFF97-Y200M4，JCFF97-Y22KW，JCFF97-Y30KW，JCFF97-Y3KW，JCFF97-Y4KW，JCFF97-Y5.5KW，JCFF97-Y7.5KW，JCFF97-Y80M4，JCFF97-Y90M4，JCFF97-YB100M4，JCFF97-YB112M4，JCFF97-YB132M4，JCFF97-YB160M4，JCFF97-YB180M4，JCFF97-YB200M4，JCFF97-YB80M4，JCFF97-YB90M4，JCFF97-YDP100M4，JCFF97-YDP112M4，JCFF97-YDP132M4，JCFF97-YDP160M4，JCFF97-YDP180M4，JCFF97-YDP200M4，JCFF97-YDP80M4，JCFF97-YDP90M4，JCFF97-YE100M4，JCFF97-YE112M4，JCFF97-YE132M4，JCFF97-YE160M4，JCFF97-YE180M4，JCFF97-YE200M4，JCFF97-YE80M4，JCFF97-YE90M4，JCFF97-YEJ100M4，JCFF97-YEJ112M4，JCFF97-YEJ132M4，JCFF97-YEJ160M4，JCFF97-YEJ180M4，JCFF97-YEJ200M4，JCFF97-YEJ80M4，JCFF97-YEJ90M4，JCFF97-YEJB100M4，JCFF97-YEJB112M4，JCFF97-YEJB132M4，JCFF97-YEJB160M4，JCFF97-YEJB180M4，JCFF97-YEJB200M4，JCFF97-YEJB80M4，JCFF97-YEJB90M4，JCFF97-YP100M4，JCFF97-YP112M4，JCFF97-YP132M4，JCFF97-YP160M4，JCFF97-YP180M4，JCFF97-YP200M4，JCFF97-YP80M4，JCFF97-YP90M4，JCFF97-YPB100M4，JCFF97-YPB112M4，JCFF97-YPB132M4，JCFF97-YPB160M4，JCFF97-YPB180M4，JCFF97-YPB200M4，JCFF97-YPB80M4，JCFF97-YPB90M4，JCFF97-YPE100M4，JCFF97-YPE112M4，JCFF97-YPE132M4，JCFF97-YPE160M4，JCFF97-YPE180M4，JCFF97-YPE200M4，JCFF97-YPE80M4，JCFF97-YPE90M4，JCFF97-YS100M4，JCFF97-YS112M4，JCFF97-YS132M4，JCFF97-YS160M4，JCFF97-YS180M4，JCFF97-YS200M4，JCFF97-YS80M4，JCFF97-YS90M4，JCFF97-YVB100M4，JCFF97-YVB112M4，JCFF97-YVB132M4，JCFF97-YVB160M4，JCFF97-YVB180M4，JCFF97-YVB200M4，JCFF97-YVB80M4，JCFF97-YVB90M4，JCFF97-YVP100M4，JCFF97-YVP112M4，JCFF97-YVP132M4，JCFF97-YVP160M4，JCFF97-YVP180M4，JCFF97-YVP200M4，JCFF97-YVP80M4，JCFF97-YVP90M4，JCFF97-YVPEJ100M4，JCFF97-YVPEJ112M4，JCFF97-YVPEJ132M4，JCFF97-YVPEJ160M4，JCFF97-YVPEJ180M4，JCFF97-YVPEJ200M4，JCFF97-YVPEJ80M4，JCFF97-YVPEJ90M4，XDFF97-Y0.75KW，XDFF97-Y1.1KW，XDFF97-Y1.5KW，XDFF97-Y100M4，XDFF97-Y112M4，XDFF97-Y11KW，XDFF97-Y132M4，XDFF97-Y15KW，XDFF97-Y160M4，XDFF97-Y18.5KW，XDFF97-Y180M4，XDFF97-Y2.2KW，XDFF97-Y200M4，XDFF97-Y22KW，XDFF97-Y30KW，XDFF97-Y3KW，XDFF97-Y4KW，XDFF97-Y5.5KW，XDFF97-Y7.5KW，XDFF97-Y80M4，XDFF97-Y90M4，XDFF97-YB100M4，XDFF97-YB112M4，XDFF97-YB132M4，XDFF97-YB160M4，XDFF97-YB180M4，XDFF97-YB200M4，XDFF97-YB80M4，XDFF97-YB90M4，XDFF97-YDP100M4，XDFF97-YDP112M4，XDFF97-YDP132M4，XDFF97-YDP160M4，XDFF97-YDP180M4，XDFF97-YDP200M4，XDFF97-YDP80M4，XDFF97-YDP90M4，XDFF97-YE100M4，XDFF97-YE112M4，XDFF97-YE132M4，XDFF97-YE160M4，XDFF97-YE180M4，XDFF97-YE200M4，XDFF97-YE80M4，XDFF97-YE90M4，XDFF97-YEJ100M4，XDFF97-YEJ112M4，XDFF97-YEJ132M4，XDFF97-YEJ160M4，XDFF97-YEJ180M4，XDFF97-YEJ200M4，XDFF97-YEJ80M4，XDFF97-YEJ90M4，XDFF97-YEJB100M4，XDFF97-YEJB112M4，XDFF97-YEJB132M4，XDFF97-YEJB160M4，XDFF97-YEJB180M4，XDFF97-YEJB200M4，XDFF97-YEJB80M4，XDFF97-YEJB90M4，XDFF97-YP100M4，XDFF97-YP112M4，XDFF97-YP132M4，XDFF97-YP160M4，XDFF97-YP180M4，XDFF97-YP200M4，XDFF97-YP80M4，XDFF97-YP90M4，XDFF97-YPB100M4，XDFF97-YPB112M4，XDFF97-YPB132M4，XDFF97-YPB160M4，XDFF97-YPB180M4，XDFF97-YPB200M4，XDFF97-YPB80M4，XDFF97-YPB90M4，XDFF97-YPE100M4，XDFF97-YPE112M4，XDFF97-YPE132M4，XDFF97-YPE160M4，XDFF97-YPE180M4，XDFF97-YPE200M4，XDFF97-YPE80M4，XDFF97-YPE90M4，XDFF97-YS100M4，XDFF97-YS112M4，XDFF97-YS132M4，XDFF97-YS160M4，XDFF97-YS180M4，XDFF97-YS200M4，XDFF97-YS80M4，XDFF97-YS90M4，XDFF97-YVB100M4，XDFF97-YVB112M4，XDFF97-YVB132M4，XDFF97-YVB160M4，XDFF97-YVB180M4，XDFF97-YVB200M4，XDFF97-YVB80M4，XDFF97-YVB90M4，XDFF97-YVP100M4，XDFF97-YVP112M4，XDFF97-YVP132M4，XDFF97-YVP160M4，XDFF97-YVP180M4，XDFF97-YVP200M4，XDFF97-YVP80M4，XDFF97-YVP90M4，XDFF97-YVPEJ100M4，XDFF97-YVPEJ112M4，XDFF97-YVPEJ132M4，XDFF97-YVPEJ160M4，XDFF97-YVPEJ180M4，XDFF97-YVPEJ200M4，XDFF97-YVPEJ80M4，XDFF97-YVPEJ90M4，F(xiàn)F99-Y0.75KW，F(xiàn)F99-Y1.1KW，F(xiàn)F99-Y1.5KW，F(xiàn)F99-Y100M4，F(xiàn)F99-Y112M4，F(xiàn)F99-Y11KW，F(xiàn)F99-Y132M4，F(xiàn)F99-Y15KW，F(xiàn)F99-Y160M4，F(xiàn)F99-Y18.5KW，F(xiàn)F99-Y180M4，F(xiàn)F99-Y2.2KW，F(xiàn)F99-Y200M4，F(xiàn)F99-Y22KW，F(xiàn)F99-Y30KW，F(xiàn)F99-Y3KW，F(xiàn)F99-Y4KW，F(xiàn)F99-Y5.5KW，F(xiàn)F99-Y7.5KW，F(xiàn)F99-Y80M4，F(xiàn)F99-Y90M4，F(xiàn)F99-YB100M4，F(xiàn)F99-YB112M4，F(xiàn)F99-YB132M4，F(xiàn)F99-YB160M4，F(xiàn)F99-YB180M4，F(xiàn)F99-YB200M4，F(xiàn)F99-YB80M4，F(xiàn)F99-YB90M4，F(xiàn)F99-YDP100M4，F(xiàn)F99-YDP112M4，F(xiàn)F99-YDP132M4，F(xiàn)F99-YDP160M4，F(xiàn)F99-YDP180M4，F(xiàn)F99-YDP200M4，F(xiàn)F99-YDP80M4，F(xiàn)F99-YDP90M4，F(xiàn)F99-YE100M4，F(xiàn)F99-YE112M4，F(xiàn)F99-YE132M4，F(xiàn)F99-YE160M4，F(xiàn)F99-YE180M4，F(xiàn)F99-YE200M4，F(xiàn)F99-YE80M4，F(xiàn)F99-YE90M4，F(xiàn)F99-YEJ100M4，F(xiàn)F99-YEJ112M4，F(xiàn)F99-YEJ132M4，F(xiàn)F99-YEJ160M4，F(xiàn)F99-YEJ180M4，F(xiàn)F99-YEJ200M4，F(xiàn)F99-YEJ80M4，F(xiàn)F99-YEJ90M4，F(xiàn)F99-YEJB100M4，F(xiàn)F99-YEJB112M4，F(xiàn)F99-YEJB132M4，F(xiàn)F99-YEJB160M4，F(xiàn)F99-YEJB180M4，F(xiàn)F99-YEJB200M4，F(xiàn)F99-YEJB80M4，F(xiàn)F99-YEJB90M4，F(xiàn)F99-YP100M4，F(xiàn)F99-YP112M4，F(xiàn)F99-YP132M4，F(xiàn)F99-YP160M4，F(xiàn)F99-YP180M4，F(xiàn)F99-YP200M4，F(xiàn)F99-YP80M4，F(xiàn)F99-YP90M4，F(xiàn)F99-YPB100M4，F(xiàn)F99-YPB112M4，F(xiàn)F99-YPB132M4，F(xiàn)F99-YPB160M4，F(xiàn)F99-YPB180M4，F(xiàn)F99-YPB200M4，F(xiàn)F99-YPB80M4，F(xiàn)F99-YPB90M4，F(xiàn)F99-YPE100M4，F(xiàn)F99-YPE112M4，F(xiàn)F99-YPE132M4，F(xiàn)F99-YPE160M4，F(xiàn)F99-YPE180M4，F(xiàn)F99-YPE200M4，F(xiàn)F99-YPE80M4，F(xiàn)F99-YPE90M4，F(xiàn)F99-YS100M4，F(xiàn)F99-YS112M4，F(xiàn)F99-YS132M4，F(xiàn)F99-YS160M4，F(xiàn)F99-YS180M4，F(xiàn)F99-YS200M4，F(xiàn)F99-YS80M4，F(xiàn)F99-YS90M4，F(xiàn)F99-YVB100M4，F(xiàn)F99-YVB112M4，F(xiàn)F99-YVB132M4，F(xiàn)F99-YVB160M4，F(xiàn)F99-YVB180M4，F(xiàn)F99-YVB200M4，F(xiàn)F99-YVB80M4，F(xiàn)F99-YVB90M4，F(xiàn)F99-YVP100M4，F(xiàn)F99-YVP112M4，F(xiàn)F99-YVP132M4，F(xiàn)F99-YVP160M4，F(xiàn)F99-YVP180M4，F(xiàn)F99-YVP200M4，F(xiàn)F99-YVP80M4，F(xiàn)F99-YVP90M4，F(xiàn)F99-YVPEJ100M4，F(xiàn)F99-YVPEJ112M4，F(xiàn)F99-YVPEJ132M4，F(xiàn)F99-YVPEJ160M4，F(xiàn)F99-YVPEJ180M4，F(xiàn)F99-YVPEJ200M4，F(xiàn)F99-YVPEJ80M4，F(xiàn)F99-YVPEJ90M4，F(xiàn)F97SF80，F(xiàn)F97SF90，F(xiàn)F97SF100，F(xiàn)F97SF112，F(xiàn)F97SF115，F(xiàn)F97SF140，F(xiàn)F97SF160，F(xiàn)F97SF190。

FF99減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.zsxinhong.com/product/list-ffxiliejiansuji-cn.html

推薦類似型號：F99減速機
