RX79減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RX79減速機選型樣本。
RX79-BE5.5KW-4P-2.13-M2-180°
RX：系列代號
79：減速機規格代號
BE：電機
5.5KW：電機功率
4P：電機級數
2.13：減速機傳動比
M2：減速機安裝位置
180°：接線盒位置
RX79減速機聯軸器的安裝：
RX79減速機輸入和輸出部件，如皮帶輪、聯軸器等在運行過程中會發生飛速運轉，可能有夾傷和擠壓危險，輸入和輸出部件采用防護罩蓋板！齒輪減速電機
RX79減速機聯軸器裝配時要根據聯軸器制造商的規定進行下列校正：最大以及a最小間距；b軸向偏差；c角偏差；若事先對輸出部件涂抹潤滑油或進行短時間加熱（到80至100°C）,則可便于裝配。

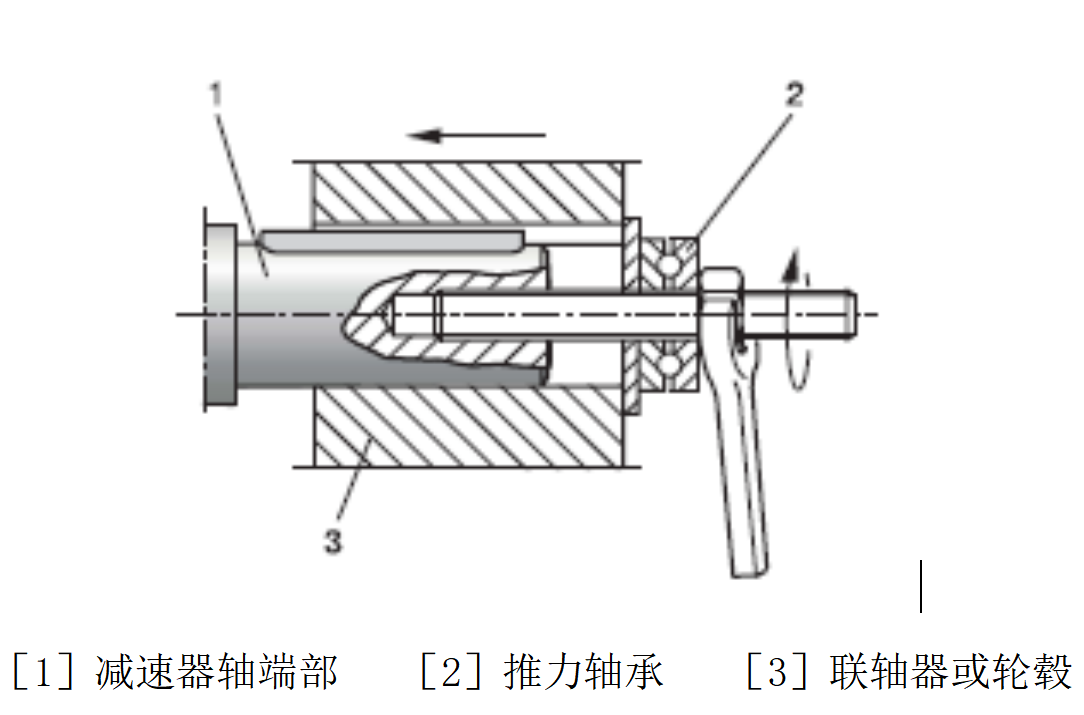

采用裝配夾具進行安裝RX79減速機聯軸器：下圖為采用裝配夾具將聯軸器或輪轂安裝RX79減速機或電機的軸端上的操作示意。若能夠順利擰緊螺栓，則可以在必要情況下無須安裝裝配夾具上的推力軸承。
RX79減速機電機安裝和電機安裝位置的調整：
均勻調整螺母將電機安裝平臺固定到需要的位置。如要將RX79減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。電機減速機一體機
將電機與電機安裝平臺對準(軸端不許對齊)并固定。
將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。
裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。
擰緊非調整螺母以固定螺桿。臥式減速機
RX79減速機型號：
XDRX77-AM100M4，XDRX77-AM112M4，XDRX77-AM132M4，XDRX77-AM160M4，XDRX77-AM71M4，XDRX77-AM80M4，XDRX77-AM90M4，XDRX77-Y0.18KW，XDRX77-Y0.25KW，XDRX77-Y0.37KW，XDRX77-Y0.55KW，XDRX77-Y0.75KW，XDRX77-Y1.1KW，XDRX77-Y1.5KW，XDRX77-Y100M4，XDRX77-Y112M4，XDRX77-Y11KW，XDRX77-Y132M4，XDRX77-Y15KW，XDRX77-Y160M4，XDRX77-Y2.2KW，XDRX77-Y3KW，XDRX77-Y4KW，XDRX77-Y5.5KW，XDRX77-Y7.5KW，XDRX77-Y71M4，XDRX77-Y80M4，XDRX77-Y90M4，XDRX77-YB100M4，XDRX77-YB112M4，XDRX77-YB132M4，XDRX77-YB160M4，XDRX77-YB71M4，XDRX77-YB80M4，XDRX77-YB90M4，XDRX77-YDP100M4，XDRX77-YDP112M4，XDRX77-YDP132M4，XDRX77-YDP160M4，XDRX77-YDP71M4，XDRX77-YDP80M4，XDRX77-YDP90M4，XDRX77-YE100M4，XDRX77-YE112M4，XDRX77-YE132M4，XDRX77-YE160M4，XDRX77-YE71M4，XDRX77-YE80M4，XDRX77-YE90M4，XDRX77-YEJ100M4，XDRX77-YEJ112M4，XDRX77-YEJ132M4，XDRX77-YEJ160M4，XDRX77-YEJ71M4，XDRX77-YEJ80M4，XDRX77-YEJ90M4，XDRX77-YEJB100M4，XDRX77-YEJB112M4，XDRX77-YEJB132M4，XDRX77-YEJB160M4，XDRX77-YEJB71M4，XDRX77-YEJB80M4，XDRX77-YEJB90M4，XDRX77-YP100M4，XDRX77-YP112M4，XDRX77-YP132M4，XDRX77-YP160M4，XDRX77-YP71M4，XDRX77-YP80M4，XDRX77-YP90M4，XDRX77-YPB100M4，XDRX77-YPB112M4，XDRX77-YPB132M4，XDRX77-YPB160M4，XDRX77-YPB71M4，XDRX77-YPB80M4，XDRX77-YPB90M4，XDRX77-YPE100M4，XDRX77-YPE112M4，XDRX77-YPE132M4，XDRX77-YPE160M4，XDRX77-YPE71M4，XDRX77-YPE80M4，XDRX77-YPE90M4，XDRX77-YS100M4，XDRX77-YS112M4，XDRX77-YS132M4，XDRX77-YS160M4，XDRX77-YS71M4，XDRX77-YS80M4，XDRX77-YS90M4，XDRX77-YVB100M4，XDRX77-YVB112M4，XDRX77-YVB132M4，XDRX77-YVB160M4，XDRX77-YVB71M4，XDRX77-YVB80M4，XDRX77-YVB90M4，XDRX77-YVP100M4，XDRX77-YVP112M4，XDRX77-YVP132M4，XDRX77-YVP160M4，XDRX77-YVP71M4，XDRX77-YVP80M4，XDRX77-YVP90M4，XDRX77-YVPEJ100M4，XDRX77-YVPEJ112M4，XDRX77-YVPEJ132M4，XDRX77-YVPEJ160M4，XDRX77-YVPEJ71M4，XDRX77-YVPEJ80M4，XDRX77-YVPEJ90M4，RX79-AM100M4，RX79-AM112M4，RX79-AM132M4，RX79-AM160M4，RX79-AM71M4，RX79-AM80M4，RX79-AM90M4，RX79-Y0.18KW，RX79-Y0.25KW，RX79-Y0.37KW，RX79-Y0.55KW，RX79-Y0.75KW，RX79-Y1.1KW，RX79-Y1.5KW，RX79-Y100M4，RX79-Y112M4，RX79-Y11KW，RX79-Y132M4，RX79-Y15KW，RX79-Y160M4，RX79-Y2.2KW，RX79-Y3KW，RX79-Y4KW，RX79-Y5.5KW，RX79-Y7.5KW，RX79-Y71M4，RX79-Y80M4，RX79-Y90M4，RX79-YB100M4，RX79-YB112M4，RX79-YB132M4，RX79-YB160M4，RX79-YB71M4，RX79-YB80M4，RX79-YB90M4，RX79-YDP100M4，RX79-YDP112M4，RX79-YDP132M4，RX79-YDP160M4，RX79-YDP71M4，RX79-YDP80M4，RX79-YDP90M4，RX79-YE100M4，RX79-YE112M4，RX79-YE132M4，RX79-YE160M4，RX79-YE71M4，RX79-YE80M4，RX79-YE90M4，RX79-YEJ100M4，RX79-YEJ112M4，RX79-YEJ132M4，RX79-YEJ160M4，RX79-YEJ71M4，RX79-YEJ80M4，RX79-YEJ90M4，RX79-YEJB100M4，RX79-YEJB112M4，RX79-YEJB132M4，RX79-YEJB160M4，RX79-YEJB71M4，RX79-YEJB80M4，RX79-YEJB90M4，RX79-YP100M4，RX79-YP112M4，RX79-YP132M4，RX79-YP160M4，RX79-YP71M4，RX79-YP80M4，RX79-YP90M4，RX79-YPB100M4，RX79-YPB112M4，RX79-YPB132M4，RX79-YPB160M4，RX79-YPB71M4，RX79-YPB80M4，RX79-YPB90M4，RX79-YPE100M4，RX79-YPE112M4，RX79-YPE132M4，RX79-YPE160M4，RX79-YPE71M4，RX79-YPE80M4，RX79-YPE90M4，RX79-YS100M4，RX79-YS112M4，RX79-YS132M4，RX79-YS160M4，RX79-YS71M4，RX79-YS80M4，RX79-YS90M4，RX79-YVB100M4，RX79-YVB112M4，RX79-YVB132M4，RX79-YVB160M4，RX79-YVB71M4，RX79-YVB80M4，RX79-YVB90M4，RX79-YVP100M4，RX79-YVP112M4，RX79-YVP132M4，RX79-YVP160M4，RX79-YVP71M4，RX79-YVP80M4，RX79-YVP90M4，RX79-YVPEJ100M4，RX79-YVPEJ112M4，RX79-YVPEJ132M4，RX79-YVPEJ160M4，RX79-YVPEJ71M4，RX79-YVPEJ80M4，RX79-YVPEJ90M4，RWX77-AM100M4，RWX77-AM112M4，RWX77-AM132M4，RWX77-AM160M4，RWX77-AM71M4，RWX77-AM80M4，RWX77-AM90M4，RWX77-Y0.18KW，RWX77-Y0.25KW，RWX77-Y0.37KW，RWX77-Y0.55KW，RWX77-Y0.75KW，RWX77-Y1.1KW，RWX77-Y1.5KW，RWX77-Y100M4，RWX77-Y112M4，RWX77-Y11KW，RWX77-Y132M4，RWX77-Y15KW，RWX77-Y160M4，RWX77-Y2.2KW，RWX77-Y3KW，RWX77-Y4KW，RWX77-Y5.5KW，RWX77-Y7.5KW，RWX77-Y71M4，RWX77-Y80M4，RWX77-Y90M4，RWX77-YB100M4，RWX77-YB112M4，RWX77-YB132M4，RWX77-YB160M4，RWX77-YB71M4，RWX77-YB80M4，RWX77-YB90M4，RWX77-YDP100M4，RWX77-YDP112M4，RWX77-YDP132M4，RWX77-YDP160M4，RWX77-YDP71M4，RWX77-YDP80M4，RWX77-YDP90M4，RWX77-YE100M4，RWX77-YE112M4，RWX77-YE132M4，RWX77-YE160M4，RWX77-YE71M4，RWX77-YE80M4，RWX77-YE90M4，RWX77-YEJ100M4，RWX77-YEJ112M4，RWX77-YEJ132M4，RWX77-YEJ160M4，RWX77-YEJ71M4，RWX77-YEJ80M4，RWX77-YEJ90M4，RWX77-YEJB100M4，RWX77-YEJB112M4，RWX77-YEJB132M4，RWX77-YEJB160M4，RWX77-YEJB71M4，RWX77-YEJB80M4，RWX77-YEJB90M4，RWX77-YP100M4，RWX77-YP112M4，RWX77-YP132M4，RWX77-YP160M4，RWX77-YP71M4，RWX77-YP80M4，RWX77-YP90M4，RWX77-YPB100M4，RWX77-YPB112M4，RWX77-YPB132M4，RWX77-YPB160M4，RWX77-YPB71M4，RWX77-YPB80M4，RWX77-YPB90M4，RWX77-YPE100M4，RWX77-YPE112M4，RWX77-YPE132M4，RWX77-YPE160M4，RWX77-YPE71M4，RWX77-YPE80M4，RWX77-YPE90M4，RWX77-YS100M4，RWX77-YS112M4，RWX77-YS132M4，RWX77-YS160M4，RWX77-YS71M4，RWX77-YS80M4，RWX77-YS90M4，RWX77-YVB100M4，RWX77-YVB112M4，RWX77-YVB132M4，RWX77-YVB160M4，RWX77-YVB71M4，RWX77-YVB80M4，RWX77-YVB90M4，RWX77-YVP100M4，RWX77-YVP112M4，RWX77-YVP132M4，RWX77-YVP160M4，RWX77-YVP71M4，RWX77-YVP80M4，RWX77-YVP90M4，RWX77-YVPEJ100M4，RWX77-YVPEJ112M4，RWX77-YVPEJ132M4，RWX77-YVPEJ160M4，RWX77-YVPEJ71M4，RWX77-YVPEJ80M4，RWX77-YVPEJ90M4，YQRX77-AM100M4，YQRX77-AM112M4，YQRX77-AM132M4，YQRX77-AM160M4，YQRX77-AM71M4，YQRX77-AM80M4，YQRX77-AM90M4，YQRX77-Y0.18KW，YQRX77-Y0.25KW，YQRX77-Y0.37KW，YQRX77-Y0.55KW，YQRX77-Y0.75KW，YQRX77-Y1.1KW，YQRX77-Y1.5KW，YQRX77-Y100M4，YQRX77-Y112M4，YQRX77-Y11KW，YQRX77-Y132M4，YQRX77-Y15KW，YQRX77-Y160M4，YQRX77-Y2.2KW，YQRX77-Y3KW，YQRX77-Y4KW，YQRX77-Y5.5KW，YQRX77-Y7.5KW，YQRX77-Y71M4，YQRX77-Y80M4，YQRX77-Y90M4，YQRX77-YB100M4，YQRX77-YB112M4，YQRX77-YB132M4，YQRX77-YB160M4，YQRX77-YB71M4，YQRX77-YB80M4，YQRX77-YB90M4，YQRX77-YDP100M4，YQRX77-YDP112M4，YQRX77-YDP132M4，YQRX77-YDP160M4，YQRX77-YDP71M4，YQRX77-YDP80M4，YQRX77-YDP90M4，YQRX77-YE100M4，YQRX77-YE112M4，YQRX77-YE132M4，YQRX77-YE160M4，YQRX77-YE71M4，YQRX77-YE80M4，YQRX77-YE90M4，YQRX77-YEJ100M4，YQRX77-YEJ112M4，YQRX77-YEJ132M4，YQRX77-YEJ160M4，YQRX77-YEJ71M4，YQRX77-YEJ80M4，YQRX77-YEJ90M4，YQRX77-YEJB100M4，YQRX77-YEJB112M4，YQRX77-YEJB132M4，YQRX77-YEJB160M4，YQRX77-YEJB71M4，YQRX77-YEJB80M4，YQRX77-YEJB90M4，YQRX77-YP100M4，YQRX77-YP112M4，YQRX77-YP132M4，YQRX77-YP160M4，YQRX77-YP71M4，YQRX77-YP80M4，YQRX77-YP90M4，YQRX77-YPB100M4，YQRX77-YPB112M4，YQRX77-YPB132M4，YQRX77-YPB160M4，YQRX77-YPB71M4，YQRX77-YPB80M4，YQRX77-YPB90M4，YQRX77-YPE100M4，YQRX77-YPE112M4，YQRX77-YPE132M4，YQRX77-YPE160M4，YQRX77-YPE71M4，YQRX77-YPE80M4，YQRX77-YPE90M4，YQRX77-YS100M4，YQRX77-YS112M4，YQRX77-YS132M4，YQRX77-YS160M4，YQRX77-YS71M4，YQRX77-YS80M4，YQRX77-YS90M4，YQRX77-YVB100M4，YQRX77-YVB112M4，YQRX77-YVB132M4，YQRX77-YVB160M4，YQRX77-YVB71M4，YQRX77-YVB80M4，YQRX77-YVB90M4，YQRX77-YVP100M4，YQRX77-YVP112M4，YQRX77-YVP132M4，YQRX77-YVP160M4，YQRX77-YVP71M4，YQRX77-YVP80M4，YQRX77-YVP90M4，YQRX77-YVPEJ100M4，YQRX77-YVPEJ112M4，YQRX77-YVPEJ132M4，YQRX77-YVPEJ160M4，YQRX77-YVPEJ71M4，YQRX77-YVPEJ80M4，YQRX77-YVPEJ90M4，JCRX77-AM100M4，JCRX77-AM112M4，JCRX77-AM132M4，JCRX77-AM160M4，JCRX77-AM71M4，JCRX77-AM80M4，JCRX77-AM90M4，JCRX77-Y0.18KW，JCRX77-Y0.25KW，JCRX77-Y0.37KW，JCRX77-Y0.55KW，JCRX77-Y0.75KW，JCRX77-Y1.1KW，JCRX77-Y1.5KW，JCRX77-Y100M4，JCRX77-Y112M4，JCRX77-Y11KW，JCRX77-Y132M4，JCRX77-Y15KW，JCRX77-Y160M4，JCRX77-Y2.2KW，JCRX77-Y3KW，JCRX77-Y4KW，JCRX77-Y5.5KW，JCRX77-Y7.5KW，JCRX77-Y71M4，JCRX77-Y80M4，JCRX77-Y90M4，JCRX77-YB100M4，JCRX77-YB112M4，JCRX77-YB132M4，JCRX77-YB160M4，JCRX77-YB71M4，JCRX77-YB80M4，JCRX77-YB90M4，JCRX77-YDP100M4，JCRX77-YDP112M4，JCRX77-YDP132M4，JCRX77-YDP160M4，JCRX77-YDP71M4，JCRX77-YDP80M4，JCRX77-YDP90M4，JCRX77-YE100M4，JCRX77-YE112M4，JCRX77-YE132M4，JCRX77-YE160M4，JCRX77-YE71M4，JCRX77-YE80M4，JCRX77-YE90M4，JCRX77-YEJ100M4，JCRX77-YEJ112M4，JCRX77-YEJ132M4，JCRX77-YEJ160M4，JCRX77-YEJ71M4，JCRX77-YEJ80M4，JCRX77-YEJ90M4，JCRX77-YEJB100M4，JCRX77-YEJB112M4，JCRX77-YEJB132M4，JCRX77-YEJB160M4，JCRX77-YEJB71M4，JCRX77-YEJB80M4，JCRX77-YEJB90M4，JCRX77-YP100M4，JCRX77-YP112M4，JCRX77-YP132M4，JCRX77-YP160M4，JCRX77-YP71M4，JCRX77-YP80M4，JCRX77-YP90M4，JCRX77-YPB100M4，JCRX77-YPB112M4，JCRX77-YPB132M4，JCRX77-YPB160M4，JCRX77-YPB71M4，JCRX77-YPB80M4，JCRX77-YPB90M4，JCRX77-YPE100M4，JCRX77-YPE112M4，JCRX77-YPE132M4，JCRX77-YPE160M4，JCRX77-YPE71M4，JCRX77-YPE80M4，JCRX77-YPE90M4，JCRX77-YS100M4，JCRX77-YS112M4，JCRX77-YS132M4，JCRX77-YS160M4，JCRX77-YS71M4，JCRX77-YS80M4，JCRX77-YS90M4，JCRX77-YVB100M4，JCRX77-YVB112M4，JCRX77-YVB132M4，JCRX77-YVB160M4，JCRX77-YVB71M4，JCRX77-YVB80M4，JCRX77-YVB90M4，JCRX77-YVP100M4，JCRX77-YVP112M4，JCRX77-YVP132M4，JCRX77-YVP160M4，JCRX77-YVP71M4，JCRX77-YVP80M4，JCRX77-YVP90M4，JCRX77-YVPEJ100M4，JCRX77-YVPEJ112M4，JCRX77-YVPEJ132M4，JCRX77-YVPEJ160M4，JCRX77-YVPEJ71M4，JCRX77-YVPEJ80M4，JCRX77-YVPEJ90M4。
RX79減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.zsxinhong.com/product/list-rxxiliejiansuji-cn.html
推薦類似型號：R79減速機
關鍵詞:減速器帶電機一體機_減速機帶電機一體機_RX系列減速器_減速機馬達一體機_RX系列減速機_RX型減速機_電機減速機一體機_GRX系列減速機_減速機電機一體機

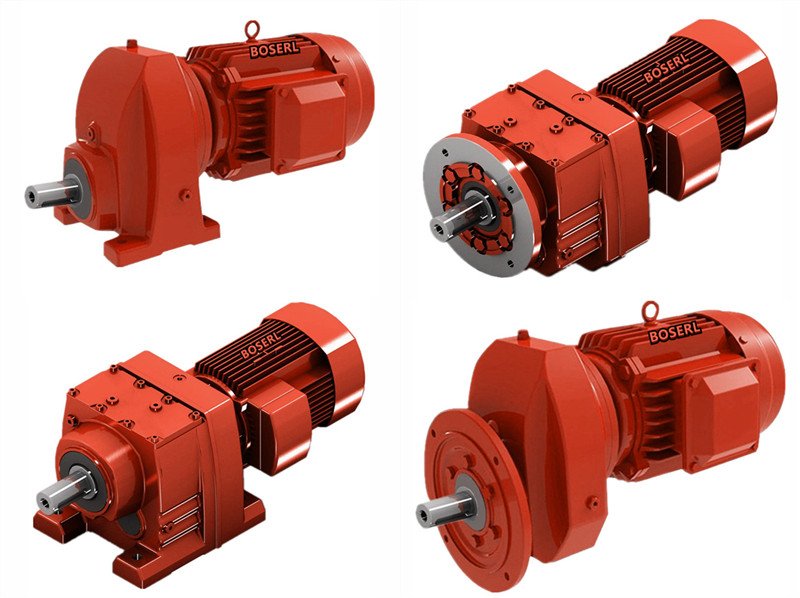

RX系列斜齒輪減速機型號：RX59減速機,RX69減速機,RX79減速機,RX89減速機,RX99減速機,RX109減速機
RX系列齒輪減速電機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-45KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
